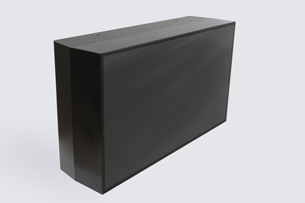

MultiTaction Cell Displays
MultiTaction® Cell displays are less than 20 cm deep. They accommodate ultra-fast response time. Sensitivity to external lighting is eliminated. :
All MultiTaction Cells
- Track unlimited touch points, including hands, fingers, fingertips, 2D markers, real-life objects
- Can be set up as a wall or as a table
- Frameless thin bezel design with smooth edge-to-edge front safety glass
- Can easily be embedded in custom furniture
MT550 MultiTaction Cell 55" Full HD LCD
- Modular, stackable to any size and shape
- 55" display unit: physical dimensions 1242 x 713 x 199 mm / 48.9 x 28.1 x 7.8 inches
MT550W7 MultiTaction Cell 55" Full HD LCD Embedded Windows 7
-
Allows multi-touch applications to be run without an external computer
-
55" display unit: physical dimensions 1242 x 713 x 199 mm / 48.9 x 28.1 x 7.8 inches
MT420S MultiTaction Cell 42" Full HD LCD Stackable
-
Modular, stackable to any size and shape
-
42" display unit: physical dimensions 965 x 557 x 200 mm / 38.0 x 21.9 x 7.9 inches
MT420W7 MultiTaction Cell 42" Full HD LCD Embedded Windows 7
-
Allows multi-touch applications to be run without an external computer
-
42" display unit: physical dimensions 965 x 557 x 200 mm / 38.0 x 21.9 x 7.9 inches
Key features of the MultiTaction technology platform:
- Computer Vision Through Screen (CVTS) recognizes unlimited number of fingertips, fingers,
hands and objects simultaneously.
- Extensible Hybrid Tracking System (EHTS) eliminates sensitivity to external lighting.
- Integrated Backlight Emitter Camera (IBEC) modules with embedded Matrix Tracking System
(MTS) provide the industry only touch system integrated into the LCD backlight plane.
- Works on Mac, Linux and Windows environments.
- MultiTaction Engine provides tracking output in all common formats and works with available
software development kit to utilize all advanced features
Download the Product Brochure for:
